GPU Expansion

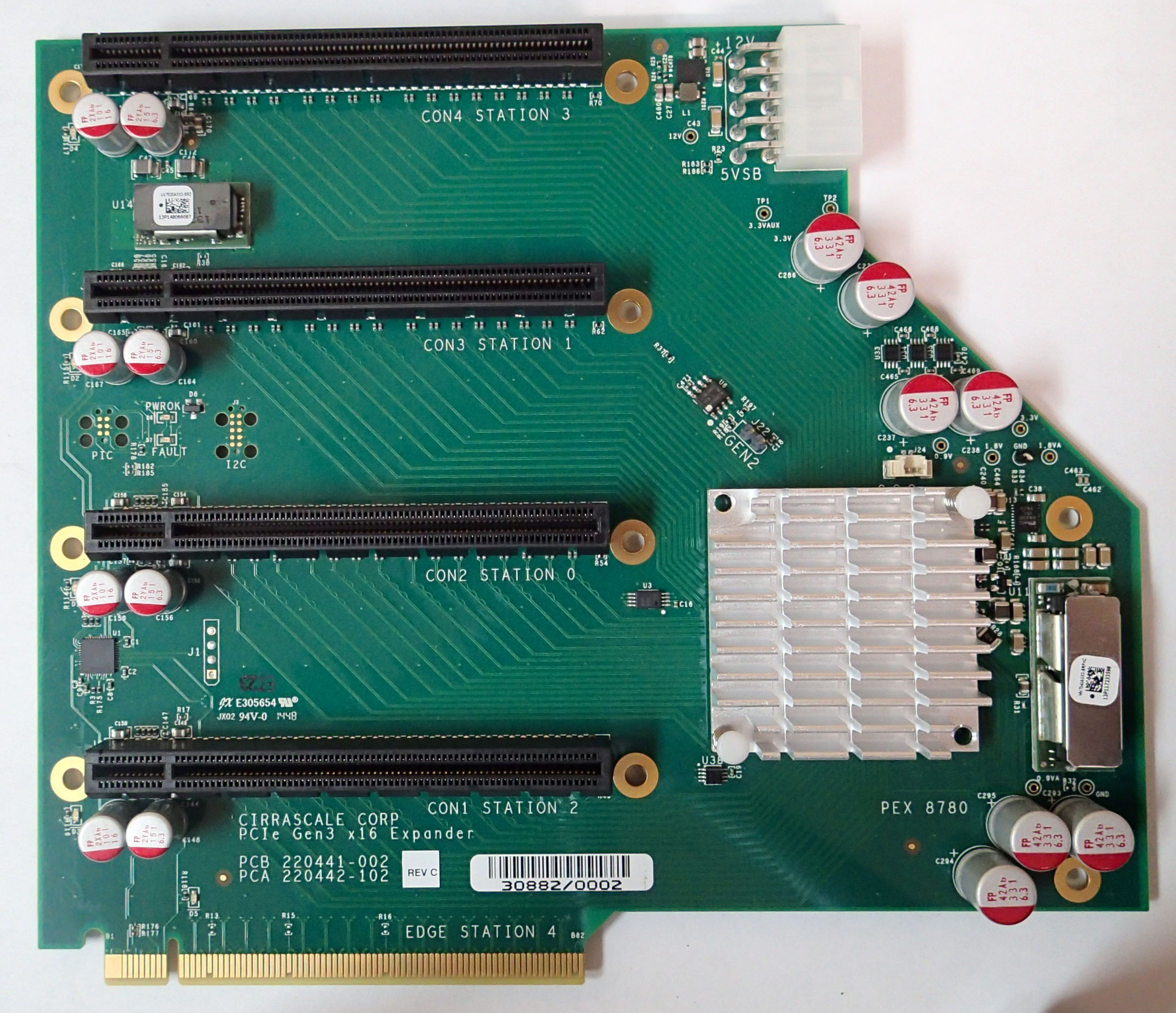

1 to 4 PCIe gen3 x16 expander. Helldyne designed and produces a high performance PCIe expander solution which allows a single x16 PCIe gen3 host port to communicate with 4 PCIe gen3 x16 add in cards. In addition to 160 lanes of 1GB/second signalling, the design supports a power infrastructure which has all 4 slots fully PCIe complaint for 75W power from the slot. Typical use is high density GPU for visualization and modeling.

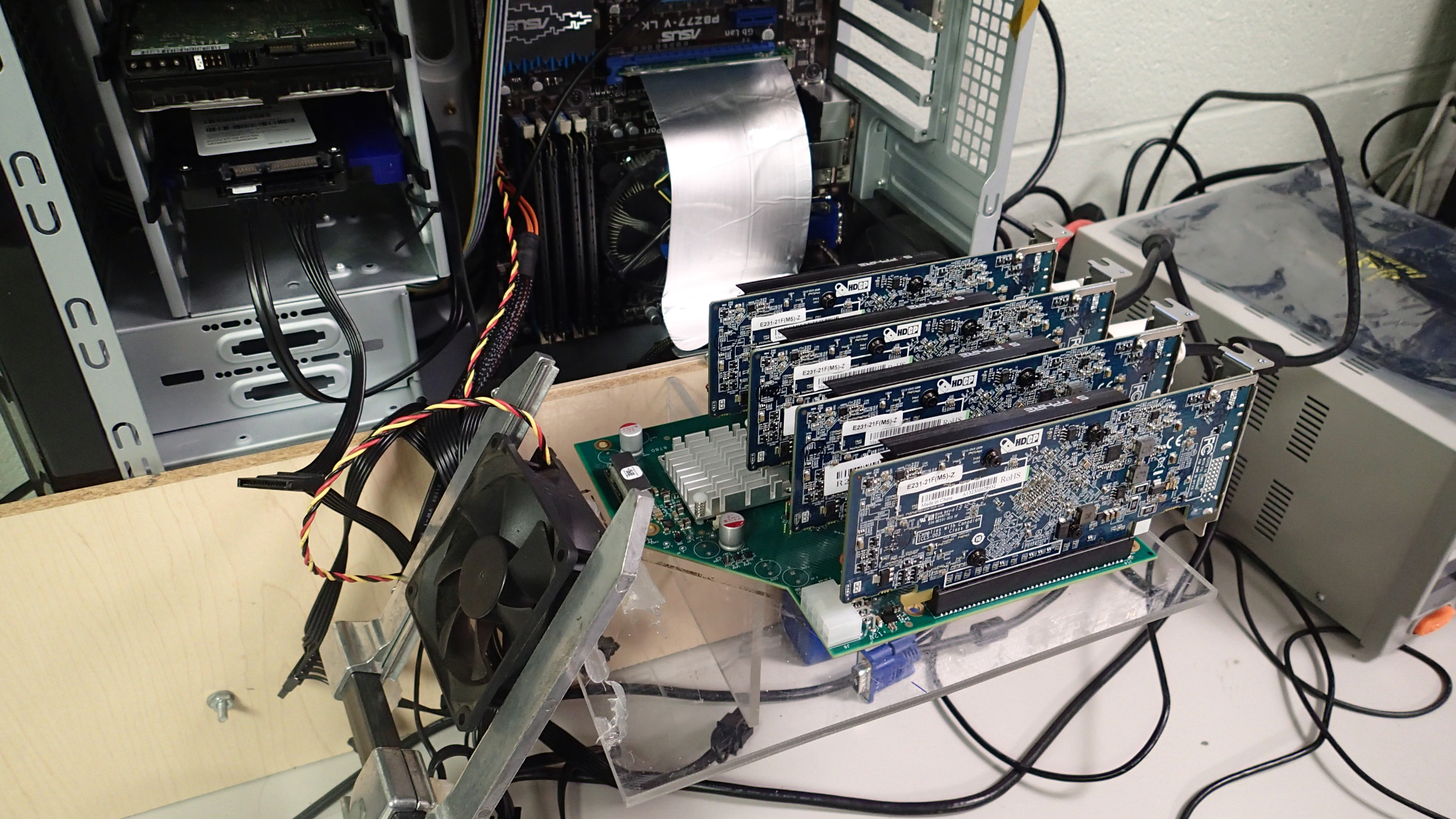

PCIe expander loaded up with 4 PCIe gen3 x16 GPU cards.
